Once the PPL Dashboard is running, open your browser and navigate to localhost:8000. Before connecting, ensure that the controller is powered on and that the following files have been added to the controller: the license.txt file, and the etc folder containing the config.json, devices.json, and all associated address map files. For instructions on creating these files, refer to the File Configuration section.

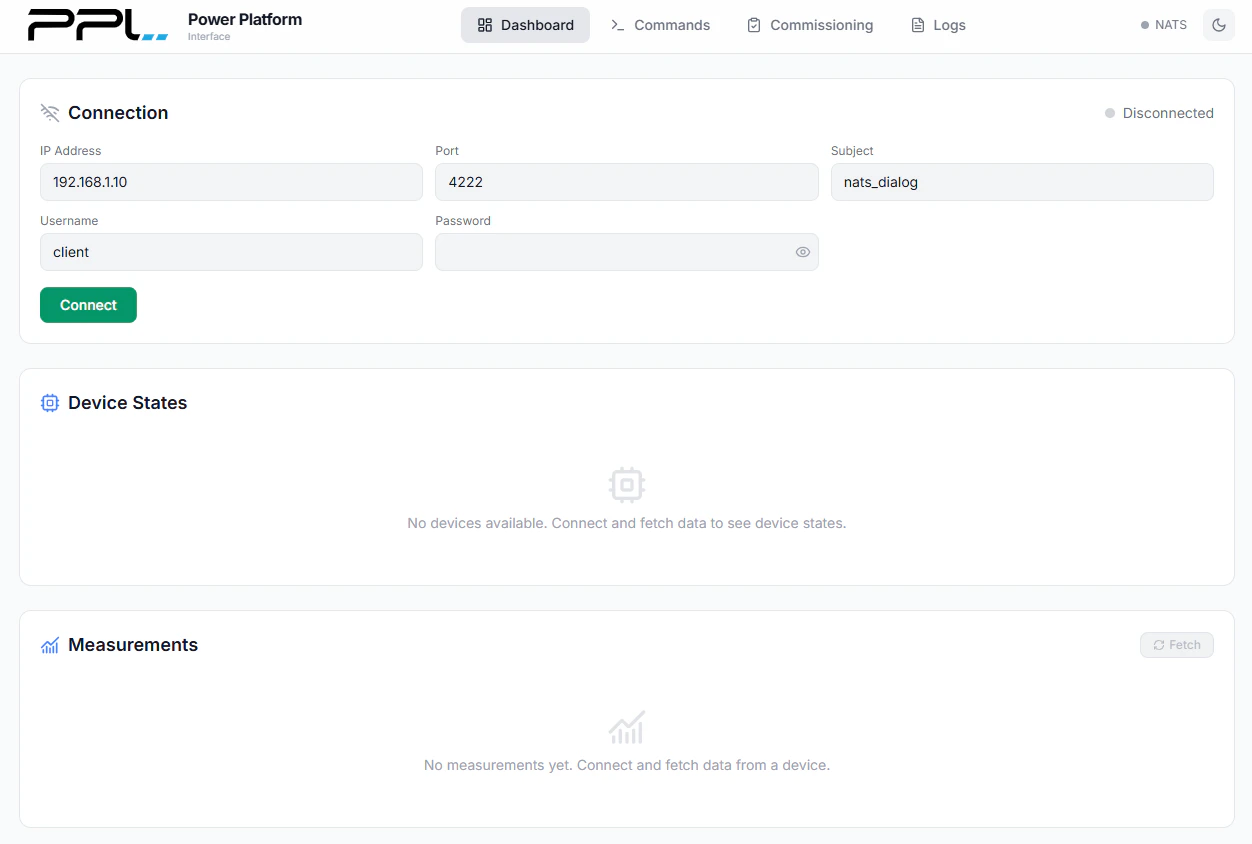

Connect to the Controller

Enter the Controller IP Address

In the connection settings, enter the IP address of the PPL controller.

Set the Port

Ensure the port is set to 4222.

Enter Credentials

Update the username and password fields to match the credentials defined in the config.json file on the controller, under the nats entry.

The username and password must be identical to the values in the config.json file. If they do not match, the connection will fail and you will be prompted with an authorization error.

Connect

Click Connect to establish the connection to the controller.

Troubleshooting Connection Issues

If the dashboard is unable to connect to the controller, review the following common causes:

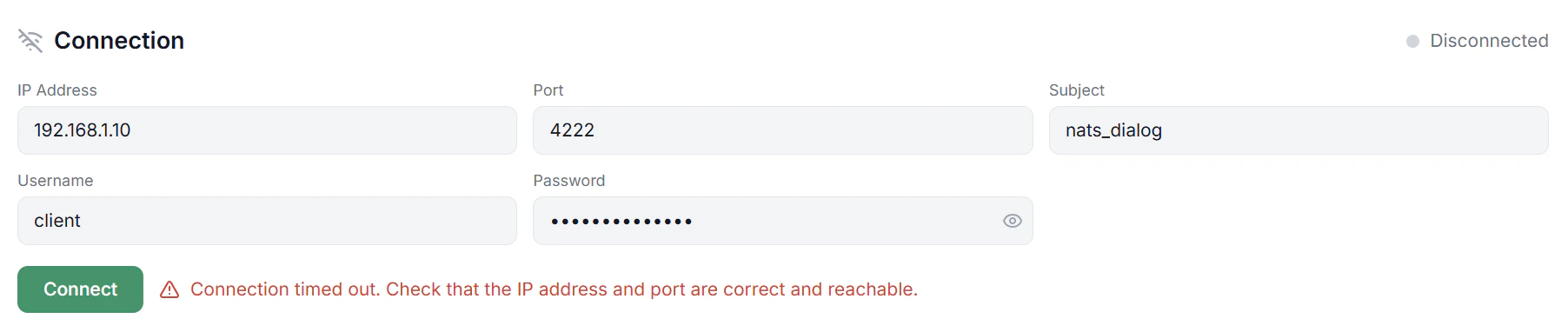

Show Connection Timed Out

If the application indicates that it took too long to establish a connection, this is a probable indication that:

The IP address is incorrect.
The port is not set to 4222.
The controller is not online or not reachable on the network.
The PPL application has not started on the controller. Possible causes include:
- Missing license.txt file on the controller.
- Missing devices.json file on the controller.
- Missing config.json file on the controller.

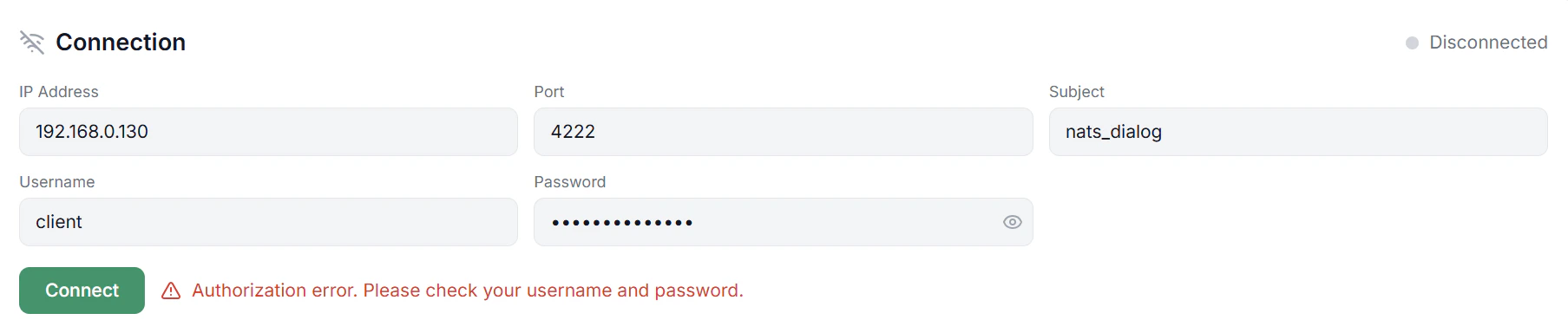

Show Authorization Error

If you receive an authorization error, the username or password does not match the credentials defined in the config.json file under the nats entry. Verify and correct the credentials, then try connecting again.
