To integrate the Power Platform controller into your local network, you need to change its default IP address to a static IP address on your network, as well as modify the controller’s subnet mask and default gateway. This section provides detailed instructions on how to configure the network settings of the controller using the Web-Based Management (WBM) interface. To change the network settings of the Power Platform controller, follow the steps below:

​
Change Network Settings

1

Login to the WBM

Login to the WBM

Login to the Web-Based Management (WBM) interface of the Power Platform controller.
2

Navigate to the Configuration Tab

Navigate to the Configuration tab in the left navigation plane and select Network.
3

Update Network Settings

Update the IP address, subnet mask, and default gateway to match your local network. For example:
  • IP address: 172.200.1.120
  • Subnet mask: 255.255.255.0
  • Default gateway: 172.200.1.1
4

Save Page & Restart

Click Save Page & Restart. The controller will reboot with the new settings and become visible on your local network with the newly set IP address.

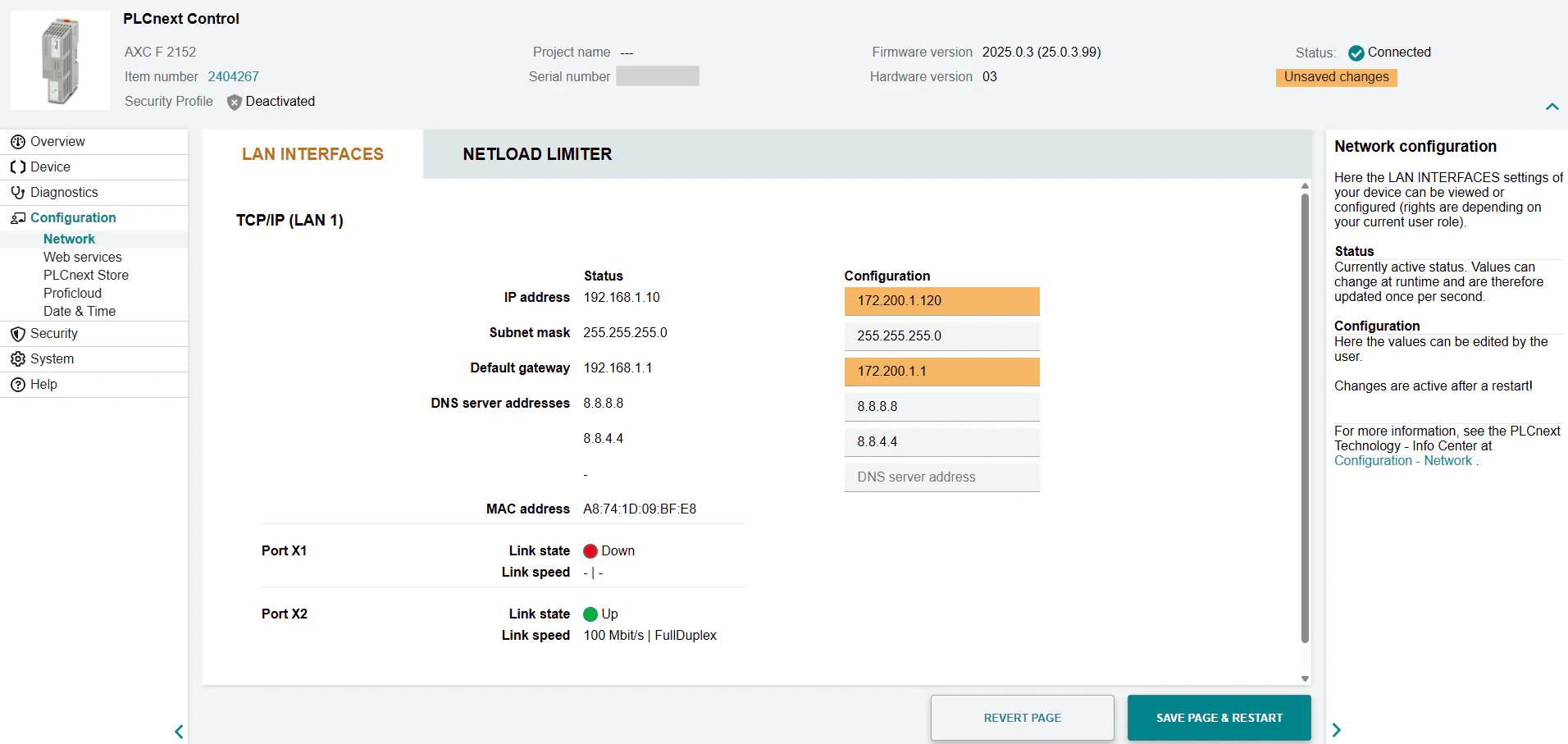

Network Configuration
